Cattle Fence

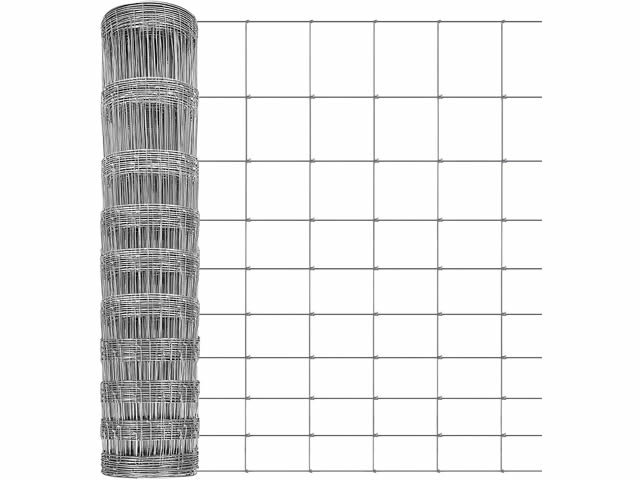

The cattle fence are also known as field fence, deer fence, sheep wire knotted wire mesh fence.We can manufacture the cattle fence. Material: hot-dipped galvanized wire, which made of Q235 iron rod....
The cattle fence are also known as field fence, deer fence, sheep wire knotted wire mesh fence.We can manufacture the cattle fence
Material: hot-dipped galvanized wire, which made of Q235 iron rod.
The tensile strength of the horizontal wire: more than 80-90kg/mm2
The tensile strength of the vertical wire: more than 40-50kg/mm2

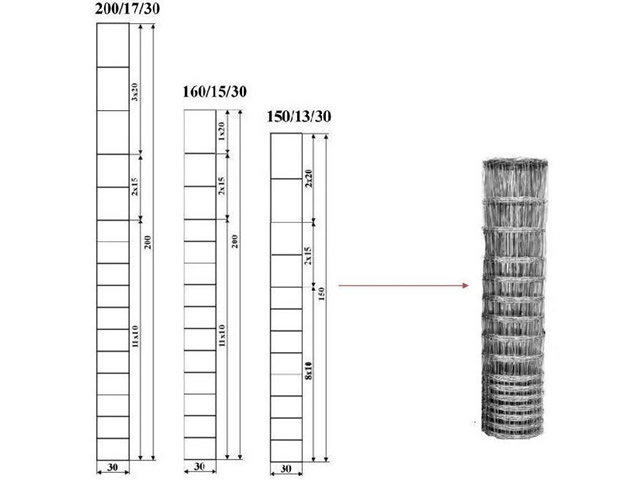

The standard specification of cattle fence as follows
| Item | Style | Specification | Total Weight kg | Edge Wire Diameter (mm) | Inner Wire Diameter (mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
Feature:
1. Preserve the ecological environment and prevent massif from landslide.
2. This quality fencing ensures a solid construction over any terrain.
3. Well-distributed, strong integration,
4. Anti-oxidizing property, Corrosion resistant.
5. Easy maintenance, Short installation period, Less weight, Easy for transport, and Good ventilation.
6. Flat mesh surface, firm and precise structure,
7. Made of high-quality carbon steel wire and stainless steel wire through by our automatic machines.
Installation Instructions

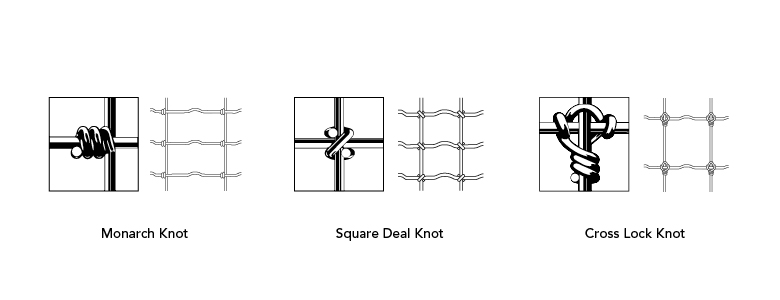

We produce three knot styles for field fencing, including:

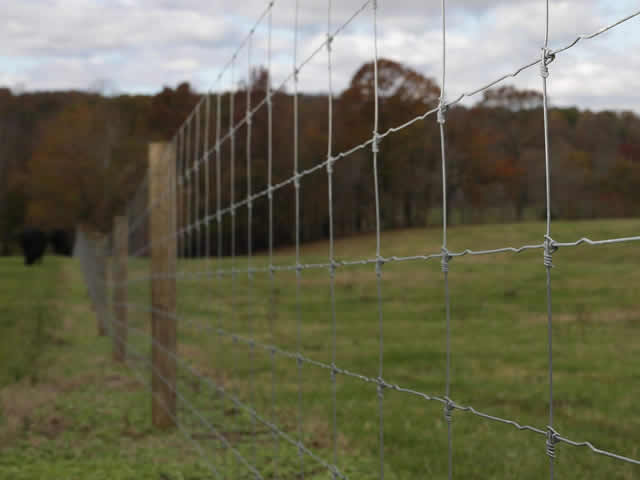

Monarch Knot – This knot style functions like a hinge. It gives a little under pressure, then springs back into shape. Our most popular fence style by far, Monarch Knot fence is easy to install because the hinge gives the mesh flexibility. The fence always retains its full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexibility.
Square Deal Knot – One-piece vertical stay wires are tied to line wires and crimped at the joint to prevent slippage, creating a firm hold. The knot hugs both vertical and horizontal wires tightly for a rigid but flexible mesh. As a result, this fence won’t sag or buckle and remains strong even under pressure from animals. And, the flexible design makes it especially effective on hilly terrain.
Cross Lock Knot – The Cross Lock Knot firmly affixes the fence wires together, providing superior resistance to movement from animal penetration or from severe snowstorms.
